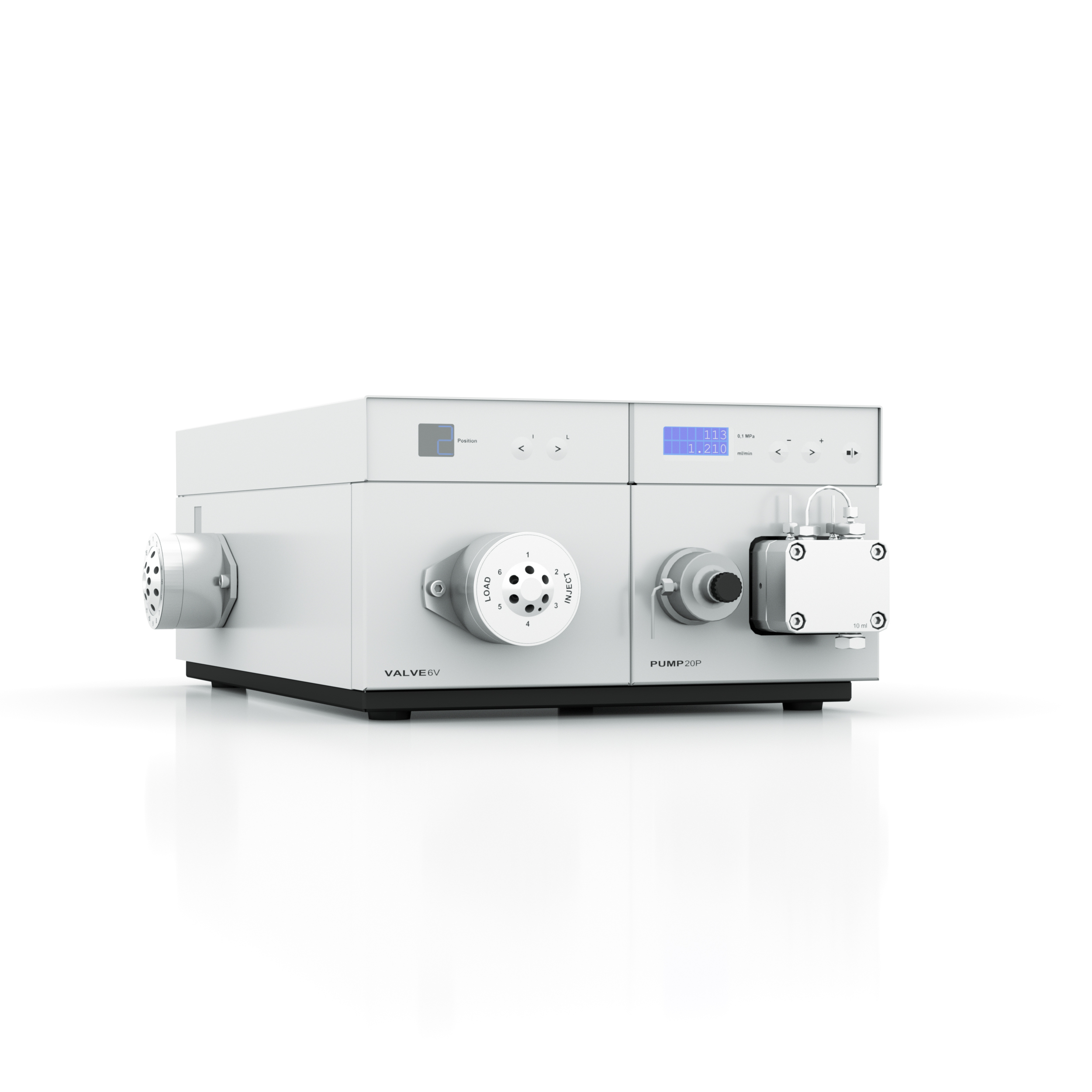

The AZURA assistant for FPLC is based on the multifunctional AZURA element ASM 2.1L. It is a very compact all-in-one device solution that is integrable into the AZURA system tower and contains two integrated modules:
- Detection via the integrated UV-Detector.
- Samples can be injected via the integrated sample pump.
A leak sensor and the capillary guidance as well as the optional control unit with touch screen facilitate the safe and user friendly operation. Modern design with completely demountable fronts and exchangeable colored side panels turn the system into a visual highlight.
The stackable elements of AZURA allow creating complex system solutions requiring only a minimum of space.
Key features
- Very compact all-in-one device
- variable single wavelength UV-detector
- feed pump for automated injection
- Leakage protection
- Customizable
| Integratable modules |
UV detector UVD 2.1S
Pump P 4.1S
|
|---|---|
| Leak management |
Yes |
| Leak sensor |
Yes |
| Ambient conditions |
2-40°C 10-90% humidity, non-condensing |
| Dimensions |
361 x 158.2 x 523 mm (W x H x D) |
| Power supply |
100 – 240V; 50 – 60 Hz; maximum 100 W |
| Control |
digital: LAN; start, error; analog out: error; integrator output (+– 2.5 V); touch screen |
