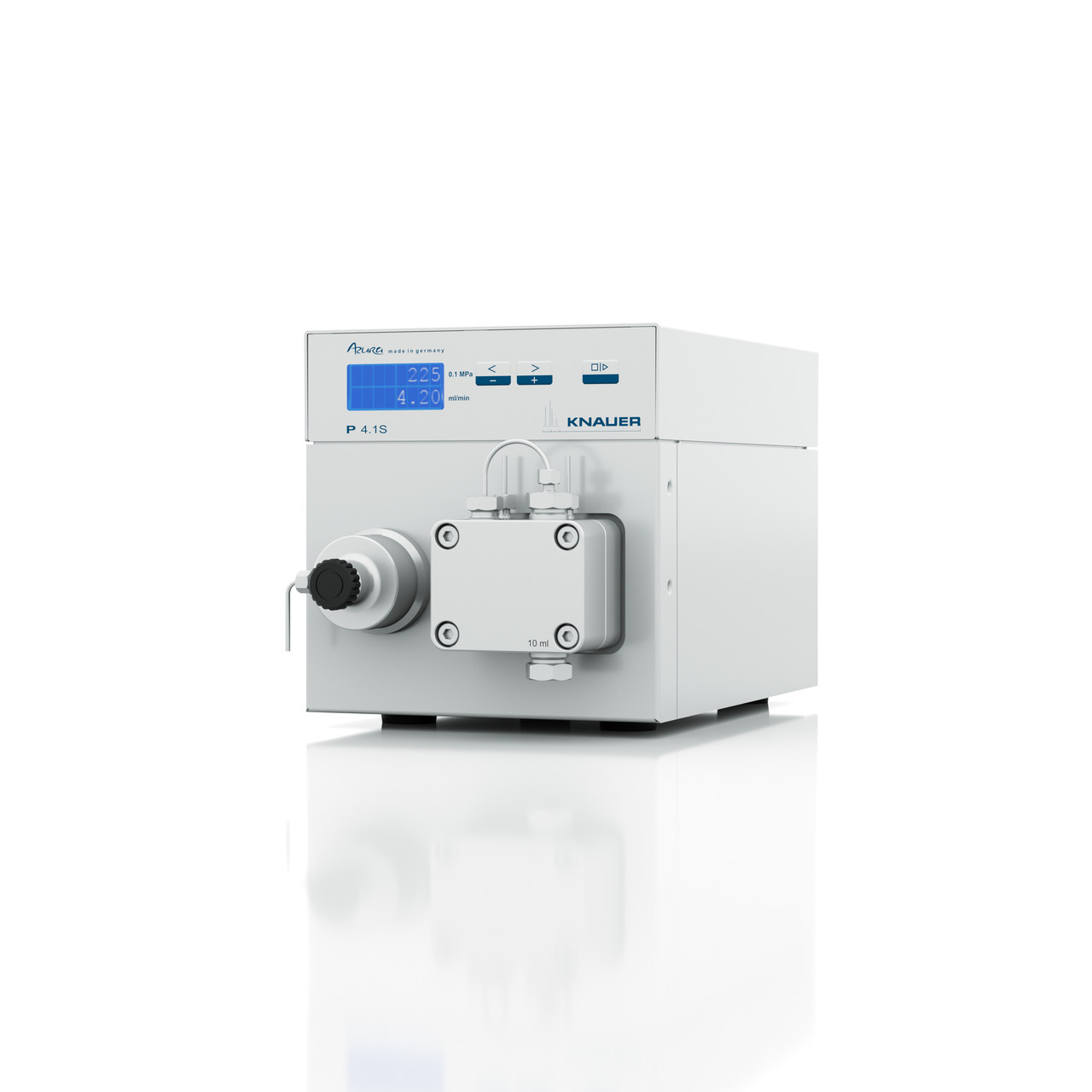

Ultra-compact high pressure pump
Die AZURA Pumpe P 4.1S (APG20EF) wurde für die Eluentförderung mit Flussraten von bis zu 10 ml/min und einem maximalen Druck von 400 bar entwickelt. Diese kompakte Pumpe kann als einfache HPLC Pumpe, als Injektionsmodul oder Dosierpumpe genutzt werden. Diese Gerätevariante mit einem Pumpenkopf aus Keramik ist die bioinert Version .
Technical Data
| Interfaces |
display |
| Control |
RS-232; analog; button on device |
| Analog inputs |
0−10V |
| Power supply |
100−240 V; 50−60 Hz |
| Dimensions |
121 x 129 x 220 mm |
| Weight |
2.3 kg |
| Leak sensor |
no |
| Ambient conditions |
temperature range: 10–40 °C; 50–104 °F
air humidity: below 90 % humidity (non condensing) |
| Max. flow rate |
10 ml/min |
| Flow rate range |
0.001−10 ml/min |
| Flow rate increment |
0.001 |
| Maximum delivery pressure [psi] |
5800 psi |
| Maximum delivery pressure [bar] |
400 bar |
| Maximum delivery pressure [MPa] |
40 MPa |
| Pump head materials |
Ceramic |
| Maximum viscosity |
100 cp |
| Liquid temperature range |
4−60 °C (39.2−140 °F) |
| Gradient |
isocratic |
| Leak management |
no |
| Wetted materials |
GFP (graphite fiber reinforced PTFE), Titanium, ceramic, FKM, PEEK, ruby, sapphire, aluminum oxide (Al2O3) |
| Note |
Pressure sensor membrane made of stainless steel; limited wetting in fluidic path |
| Best working conditions |
0.1−8.0 ml/min |
| Continous working conditions |
0.1−4.0 ml/min |
| Pump type |
Ultra-compact high pressure pump |
| Pulsation compensation |
no |
| Active piston seal wash |
no |
| Piston seal washing |
yes |
| System protection |
- Pmin and Pmax adjustable
- Imin and Imax adjustable
|
| Pump head inlet (standard) |
1/4″-28 UNF (flat bottom) |
| Pump head outlet (standard) |
10−32 UNF (coned) |
-
