AZURA UHPLC System

Product No:

A46013

System Proposal

SKU: A46013 Category: Tags: ,

System Proposal

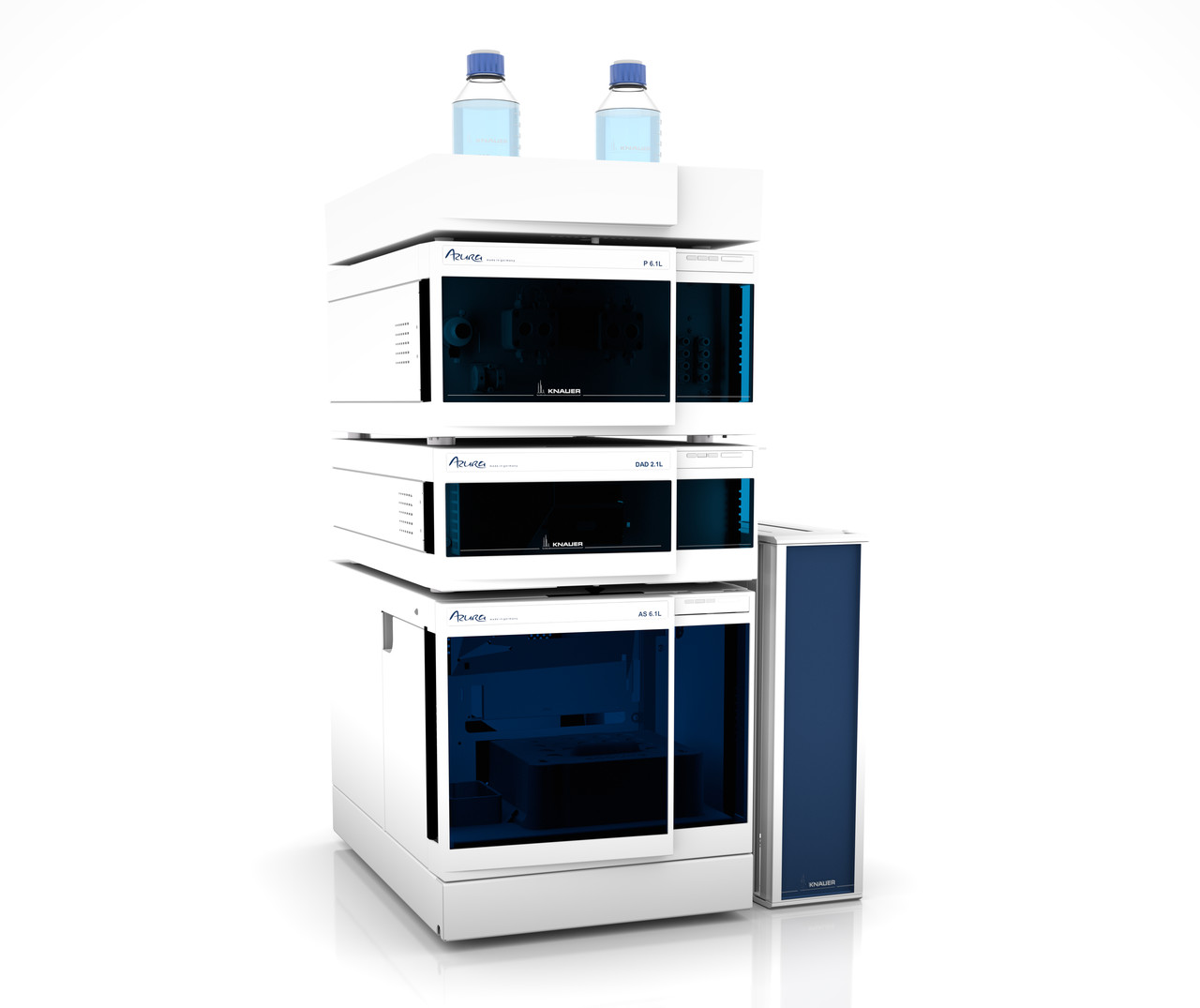

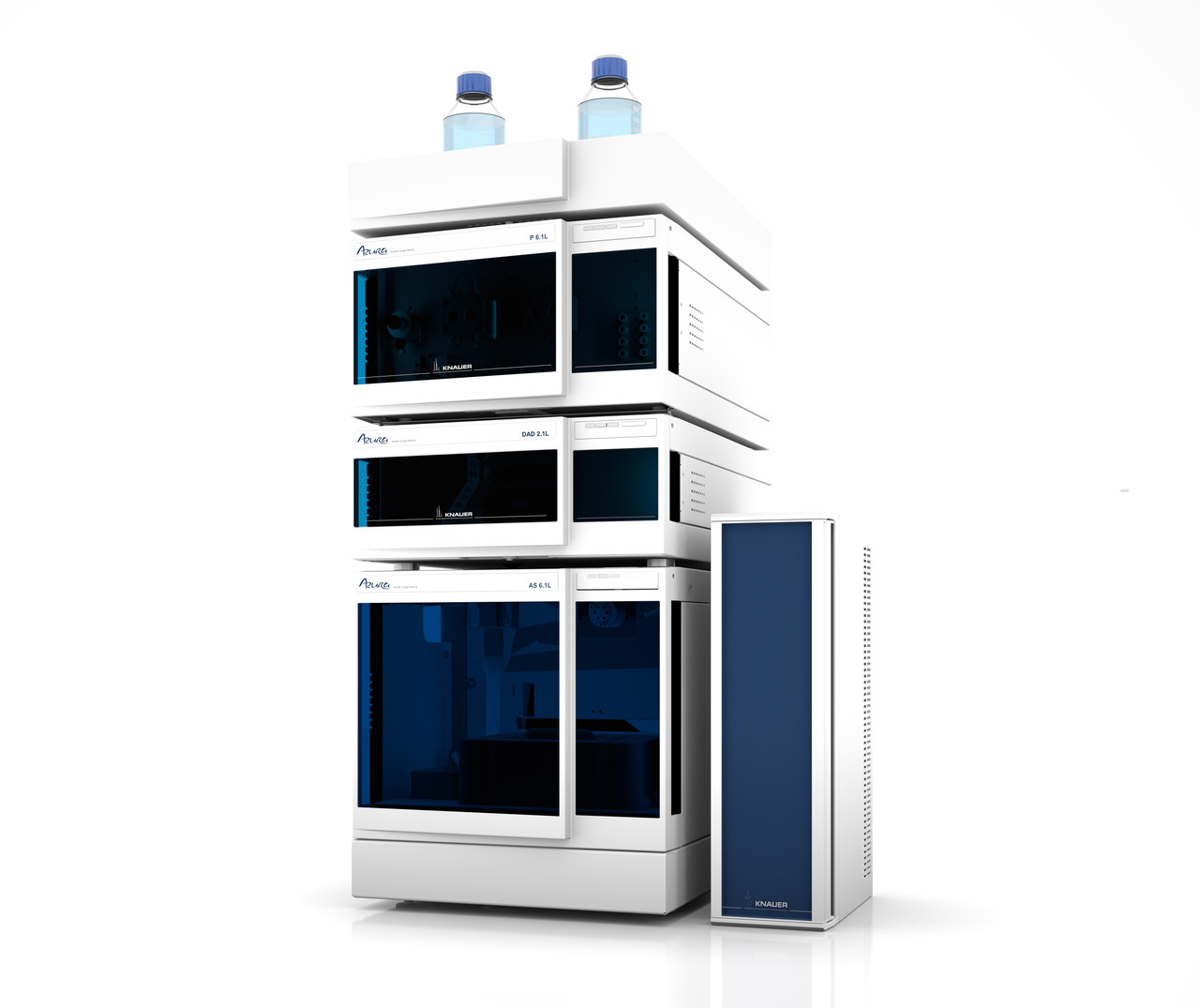

This system features a AZURA P 6.1L HPG pump, an Autosampler 6.1L, a column thermostat CT 2.1, a DAD 6.1L UV/VIS detector with 8-variable UV measuring channels from 190 – 1000 nm, as well as a Tablet PC with AZURA Mobile Control. It is the UHPLC system with a backpressure range of 1000 bar. It perfectly fits the demanding needs of a method development system, as well as the robust fitness of a routine analysis machine.

The P6.1L with a LPG configuration features a new LPG valve for the most precise blending effciency. The internal degassing unit will prevent air bubbles in the system. Every P 6.1L comes with an attached mixing chamber, which can be changed to a larger volume depending on the applications needs.

The DAD 6.1L features a novel light path and flow cell architecture with improved handling and excellent performance. The frontal lamp and cell change ensures easy and secure maintenance. The temperature controlled optical bench minimizes signal drift. The wide flow cell selection allows the DAD 6.1L to be easily adapted to your needs..

The Autosampler 6.1L can inject 0.1 – 5000 µl to have a large flexibility. Using standard vials or two microtiter plates will give you a maximum sample capacity of up to 768 samples or 108 vials.

The AZURA CT 2.1 is the new price attractive basic column thermostat. It is suitable for column thermostatization above and below room temperature. The instrument operates with a microprocessor controlled Peltier element for exact temperature settings

Key features

  • Complete gradient analytical HPLC system
  • Variable multichannel UV/VIS Detector (or DAD)
  • Pump unit with pressure sensor for a low pulsation eluent supply (max. 1000 bar)
  • AZURA Mobile Control unit allows direct control of all integrated modules
  • Introduction to operation of software and hardware
  • Complete software package OpenLAB
  • Mobile Control for maintenance and diagnostics
  • Leakage protection
  • PC with Monitor

Technical Data

Analytical system

Application area UHPLC
Pump system Gradient
Gradient Quarternary LPG
Injection Autosampler
Detector Diode array detection DAD
Software OpenLab, Mobile Control
Pressure 1000 bar
Column thermostat Yes
