Cannabis Profiler : HPLC System for cannabis potency testing (THC and CBD)

Quick and easy determination of six cannabinoids

This AZURA Analytical system is dedicated for the analysis of six common cannabinoids of high medicinal interest. Cannabidiol (CBD), cannabidiolic acid (CBDA), cannabinol (CBN), Δ8-tetrahydrocannabinol (Δ8-THC), Δ9-tetrahydrocannabinol (Δ9-THC), and Δ9-tetrahydrocannabinolic acid (Δ9-THCA) can easily be quantified according to the monography of German Pharmacopeia.

The applied method is verified using authorized medicinal cannabis flower samples available on the market. The substances were analysed with the help of chemical reference standards.

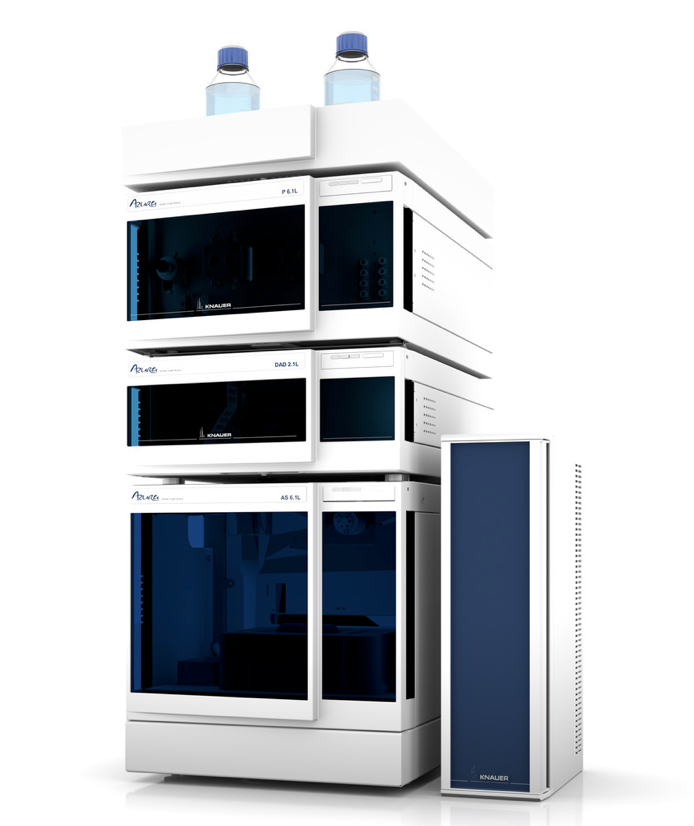

This system features a AZURA P 6.1L LPG pump, an Autosampler AS 6.1L, a column thermostat CT 2.1 and an MWD 2.1L UV/VIS detector

• The AZURA P 6.1L with an LPG configuration features a new LPG valve for the most precise blending efficiency. The internal degassing unit will prevent air bubbles in the system. Every AZURA P 6.1L comes with an attached mixing chamber, which can be changed to a larger volume depending on the needs of the application.
• The MWD 2.1L is an 8 channel, sensitive multiwavelength detector combining high performance with easy handling at an affordable price. A novel light path and flow cell architecture with improved handling and excellent performance make this device suited for a wide range of application tasks. The frontal lamp and cell change ensures easy and secure maintenance. The temperature controlled optical bench minimizes signal drift.
• The Autosampler 6.1L can inject 0.1 – 5000 µl to have a large flexibility. Using standard vials or two microtiter plates will give you a maximum sample capacity of up to 768 samples or 108 vials.
• The AZURA CT 2.1 is the new price attractive basic column thermostat. It is suitable for column thermostatization above and below room temperature. The instrument operates with a microprocessor controlled Peltier element for exact temperature settings.

TECHNICAL DATA

Analytical system
