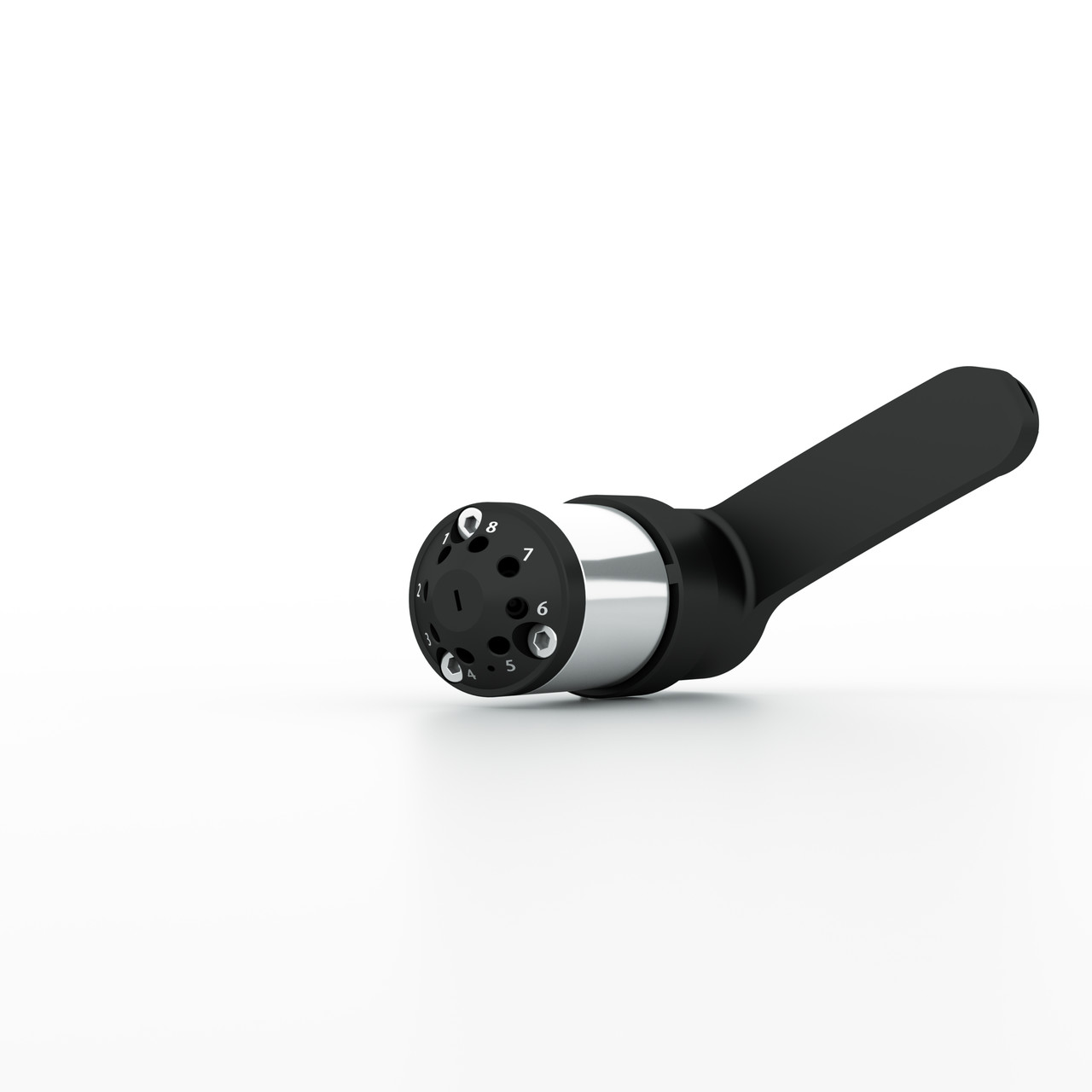

Manual valve with 8 port and 2 position
KNAUER’s well-known high pressure and ultra-high pressure pumps and detectors based on AZURA® technology are now accompanied by the next generation of high precision injection and switching valves, designed to operate at pressures up to 1200 bar. This new valve series is ideal for users requiring low delay volumes and high durability and high performance.
All valves include suitable fittings. Additionally, valves with two positions include an injection port for injection and the 12-port and 16-port valve include tubing for fractionation.
Technical Data
Valve details
| Function | Injection |
|---|---|
| Capillary connection | 1/16″ |
| Bore size | 0.3 mm |
| Thread | 10-32 UNF |
| Max. pressure [bar] | 1200 bar |
| Max. pressure [MPa] | 120 MPa |
| Max. pressure [psi] | 17400 psi |
| Maximum flow rate | 50 ml/min |
| Operation mode | Manual |
| Port number | 8 |
| Positions | 2 |
| Stator material | DLC (Diamond-like carbon) |
| Rotor material | Vespel® |
General
| Dimensions | Valve diameter: 40 mm |
|---|---|
| Weight | 0.2 kg |
| Ambient conditions | Temperature range: 4–40 °C; 39.2–104 °F; below 90 % humidity (non condensing) |
